Description
| Fixed | Item No. | Size | Width | Material | Bearing | Height | Plate Size | Hole Size | Aperture | Thickness | Capacity |
 | 1075F10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | 95*65 | 75*45 | 9.2 | 2.5 | 120 |
| 1100F10 | 100 | 32 | Rubber | 131 | 95*65 | 75*45 | 9.2 | 2.5 | 160 | ||
| 1125F10 | 125 | 32 | Rubber | 160 | 95*65 | 75*45 | 9.2 | 2.5 | 200 |

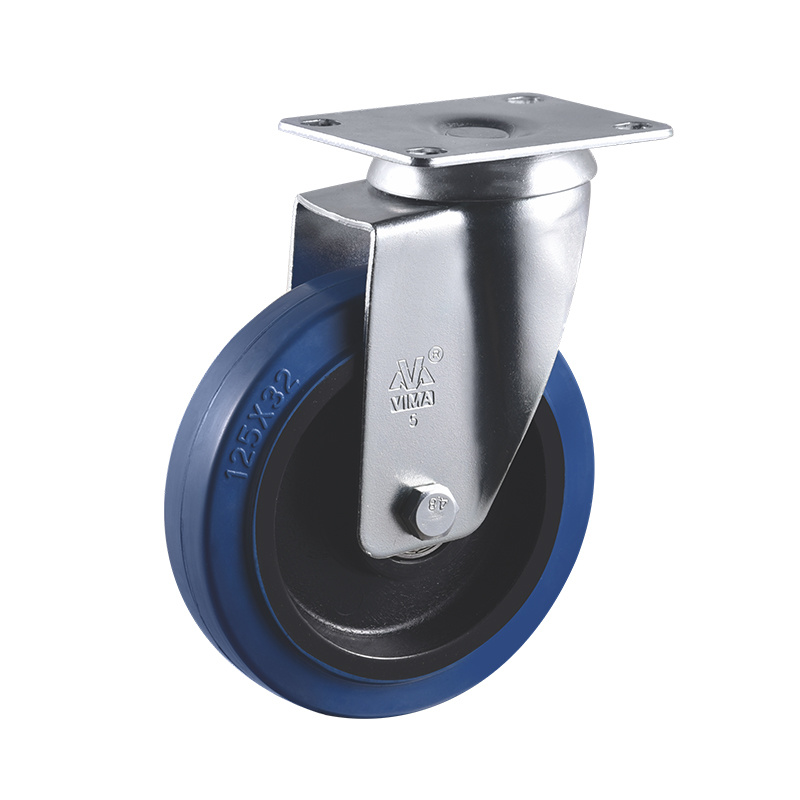

| Swivel | Item No. | Size | Width | Material | Bearing | Height | Plate Size | Hole Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075PS10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | 95*65 ＆ 100*90 | 75*45 ＆ 80*60 | 33 | 70.8 | 4.0-2.5 3.0-2.5 | 120 |
| 1100PS10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 160 | |||||
| 1125PS10 | 125 | 32 | Rubber | 160 | 37 | 101 | 200 |

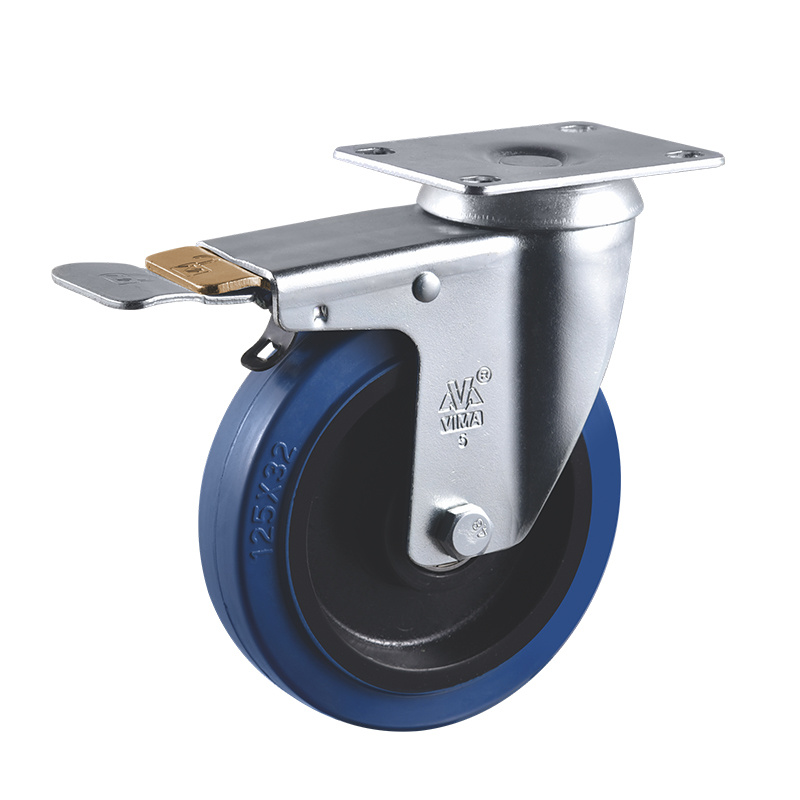

| Swivel Brake | Item No. | Size | Width | Material | Bearing | Height | Plate Size | Hole Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075PB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | 95*65 ＆ 100*90 | 75*45 ＆ 80*60 | 33 | 128 | 4.0-2.5 3.0-2.5 | 120 |
| 1100PB10 | 100 | 32 | Rubber | 131 | 33 | 128 | 160 | |||||
| 1125PB10 | 125 | 32 | Rubber | 160 | 37 | 139 | 200 |

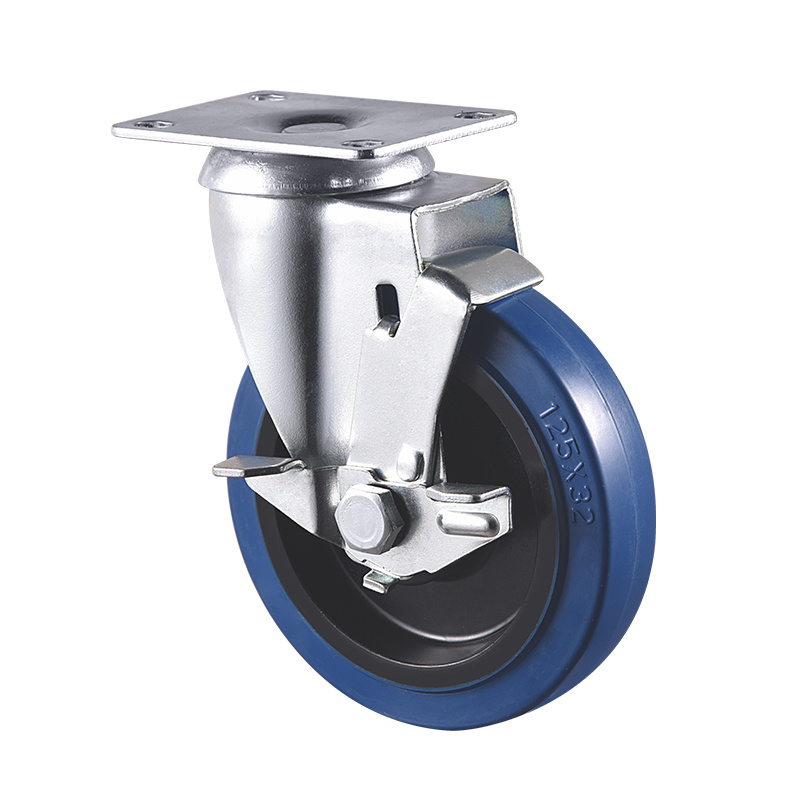

Swivel Side-Brake | Item No. | Size | Width | Material | Bearing | Height | Plate Size | Hole Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075PSB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | 95*65 ＆ 100*90 | 75*45 ＆ 80*60 | 33 | 70.8 | 4.0-2.5 3.0-2.5 | 120 |
| 1100PSB10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 160 | |||||
| 1125PSB10 | 125 | 32 | Rubber | 160 | 37 | 101 | 200 |

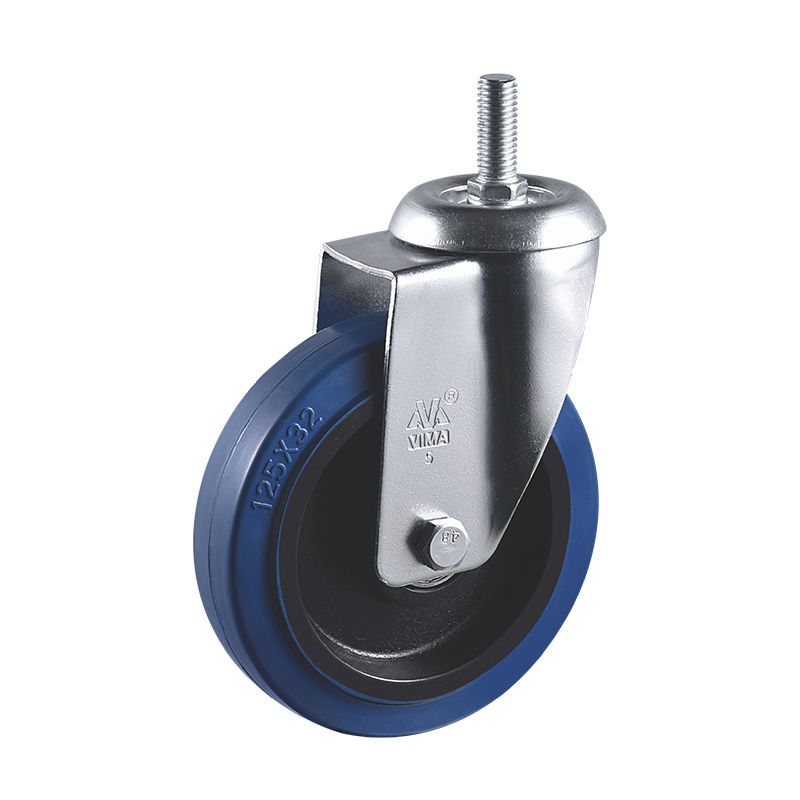

| Thread Swivel | Item No. | Size | Width | Material | Bearing | Height | Thread Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075LS10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | M12*30 | 33 | 70.8 | 2.5 | 120 |
| 1100LS10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 2.5 | 160 | |||
| 1125LS10 | 125 | 32 | Rubber | 160 | 37 | 101 | 2.5 | 200 |

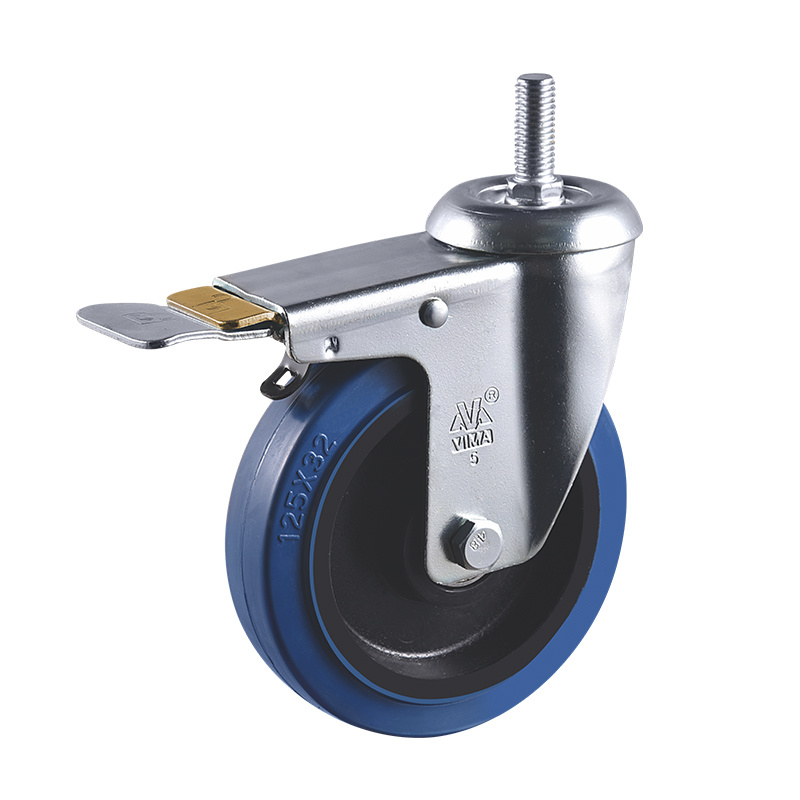

| Thread Swivel Brake | Item No. | Size | Width | Material | Bearing | Height | Thread Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075LB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | M12*30 | 33 | 128 | 2.5 | 120 |
| 1100LB10 | 100 | 32 | Rubber | 131 | 33 | 128 | 2.5 | 160 | |||
| 1125LB10 | 125 | 32 | Rubber | 160 | 37 | 139 | 2.5 | 200 |

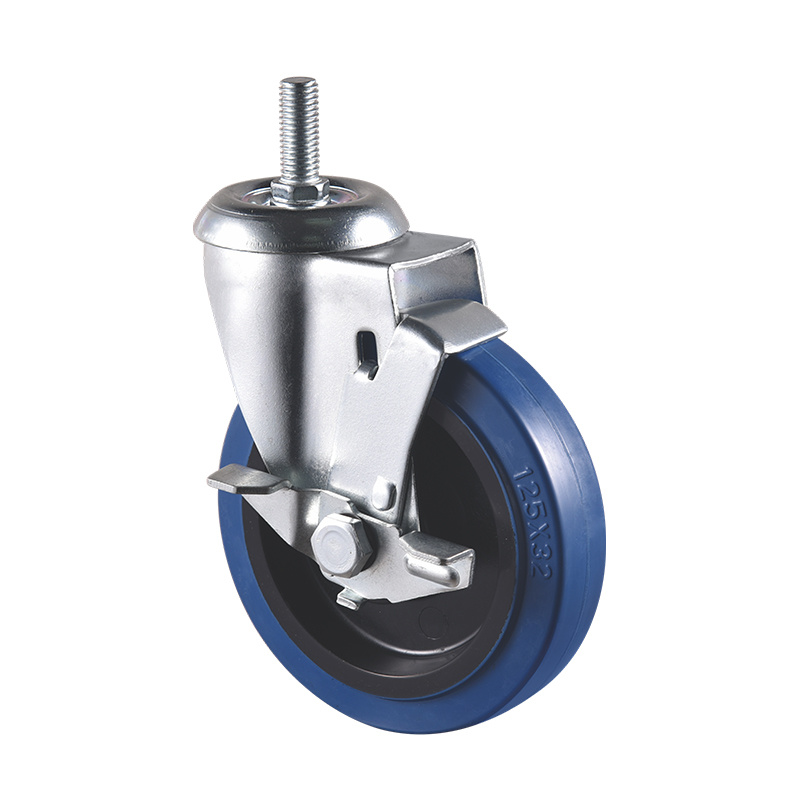

| Thread Swivel Side-Brake | Item No. | Size | Width | Material | Bearing | Height | Thread Size | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075LSB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | M12*30 | 33 | 70.8 | 2.5 | 120 |
| 1100LSB10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 2.5 | 160 | |||
| 1125LSB10 | 125 | 32 | Rubber | 160 | 37 | 101 | 2.5 | 200 |

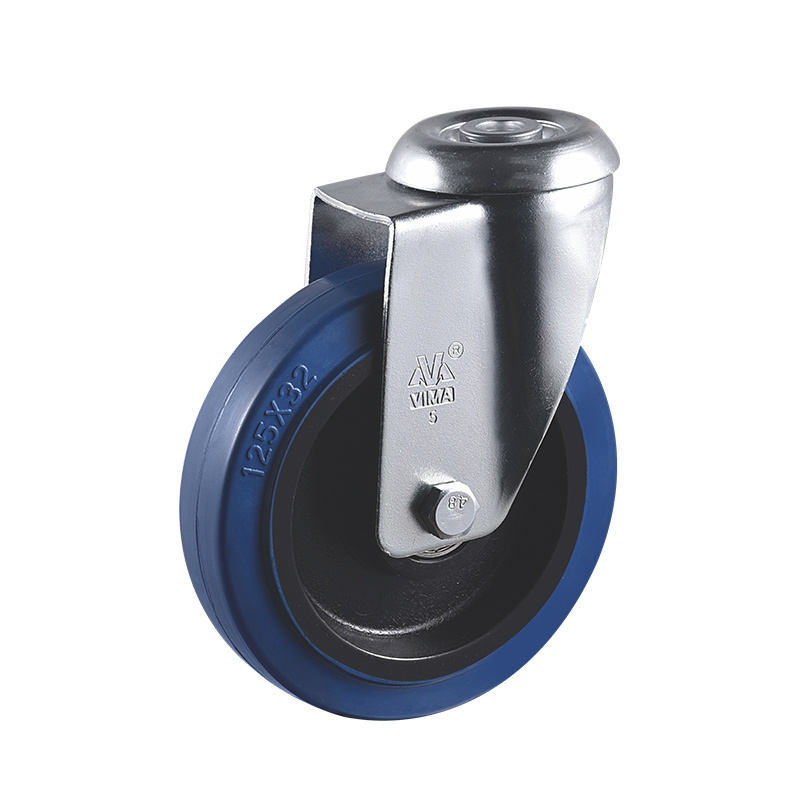

| Bolt-Hole Swivel | Item No. | Size | Width | Material | Bearing | Height | Bolt-Hole | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075HS10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | ∅12.3 | 33 | 70.8 | 2.5 | 120 |
| 1100HS10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 2.5 | 160 | |||
| 1125HS10 | 125 | 32 | Rubber | 160 | 37 | 101 | 2.5 | 200 |

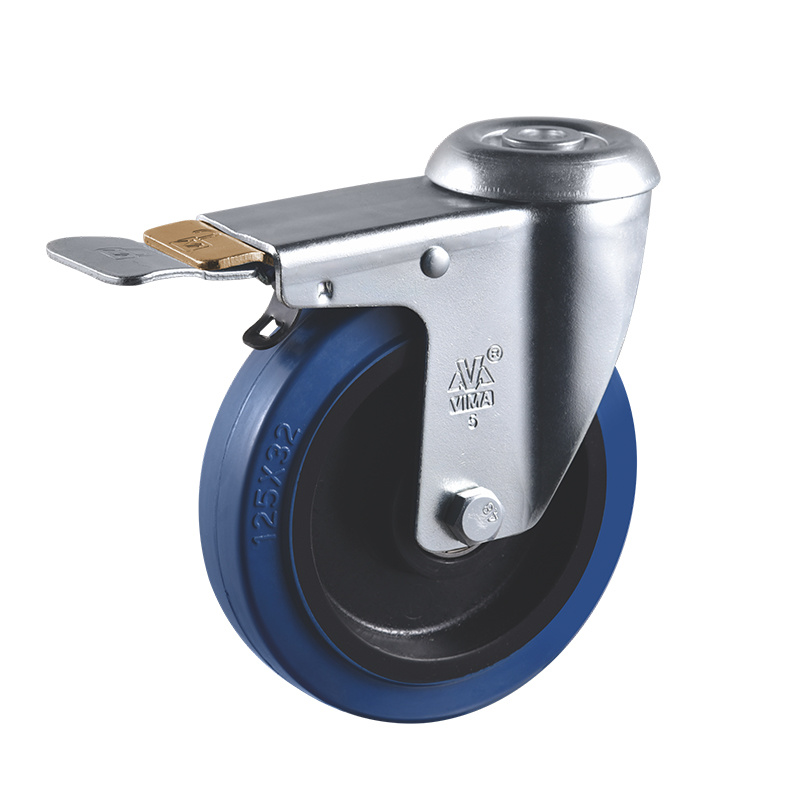

| Bolt-Hole Swivel Brake | Item No. | Size | Width | Material | Bearing | Height | Bolt-Hole | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075HB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | ∅12.3 | 33 | 128 | 2.5 | 120 |
| 1100HB10 | 100 | 32 | Rubber | 131 | 33 | 128 | 2.5 | 160 | |||
| 1125HB10 | 125 | 32 | Rubber | 160 | 37 | 139 | 2.5 | 200 |
| Bolt-Hole Swivel Side-Brake | Item No. | Size | Width | Material | Bearing | Height | Bolt-Hole | Offset | Radius of Rotation | Thickness | Capacity |
 | 1075HSB10 | 75 | 32 | Rubber | Double Ball Bearing | 108 | ∅12.3 | 33 | 70.8 | 2.5 | 120 |
| 1100HSB10 | 100 | 32 | Rubber | 131 | 33 | 83.5 | 2.5 | 160 | |||
| 1125HSB10 | 125 | 32 | Rubber | 160 | 37 | 101 | 2.5 | 200 |
